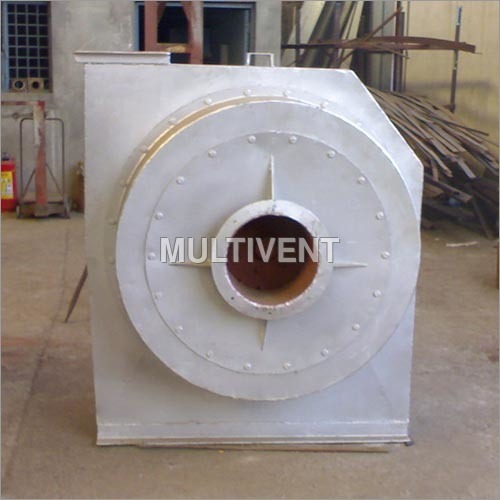

High Pressure fan for Pneumatic Conveying

Name: High Pressure fan for Pneumatic Conveying
Brand: MULTIVENT ENGINEERS
Price: 1 INR
Availability: InStock

1 INR/Box

Get a Price/Quote

Product Details:

Surface Finish Epoxy Powder Coated
Technology Backward Curved Blade Technology
Motor Speed 2900 RPM
Power Source Electric
Shape Round
Humidity Range Up to 95% RH
Accessories Inlet Cone, Vibration Absorbers, Base Frame
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

High Pressure fan for Pneumatic Conveying Price And Quantity

Price 1 INR/Box
Minimum Order Quantity 1 Piece

Static Pressure Up to 1800 mm WG
Blade Construction Backward Curved, Thick Plate
Protection Class IP55
Motor Type 3 Phase Induction
Impeller Material Dynamically Balanced Mild Steel
Vibration Level Within ISO Recommended Limits
Fan Diameter 400 mm
Number of Phases 3 Phase
Temperature Range -10C to +60C
Inlet Size 200 mm

High Pressure fan for Pneumatic Conveying Product Specifications

Features Dynamic Balanced Impeller, Rugged Construction, High Suction Pressure
Power 7.5 kW
Accessories Inlet Cone, Vibration Absorbers, Base Frame
Humidity Range Up to 95% RH
Capacity 6000 m3/h
Shape Round
Power Source Electric
Voltage 415 V
Material Mild Steel
Usage Industrial Pneumatic Conveying
Motor Speed 2900 RPM
Type Centrifugal High Pressure Fan
Technology Backward Curved Blade Technology
Surface Finish Epoxy Powder Coated
Application Material Handling & Pneumatic Conveying
Function Air Delivery, Dust Conveying
Noise Level Below 85 dB(A)
Air Flow Capacity Up to 6500 m3/h
Installation Type Duct Mounted / Base Mounted
Frequency 50 Hz
Mounting Type Floor Mounted/Base Mounted
Energy Efficiency Rating IE2 / IE3 Motor
Automation Grade Semi-Automatic
Coverage Area Large Industrial Area

Static Pressure Up to 1800 mm WG
Blade Construction Backward Curved, Thick Plate
Protection Class IP55
Motor Type 3 Phase Induction
Impeller Material Dynamically Balanced Mild Steel
Vibration Level Within ISO Recommended Limits
Fan Diameter 400 mm
Number of Phases 3 Phase
Temperature Range -10C to +60C
Inlet Size 200 mm

High Pressure fan for Pneumatic Conveying Trade Information

Supply Ability 1 Piece Per Day
Delivery Time 4 Week
Main Export Market(s) Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa, Asia
Main Domestic Market All India
Certifications AN ISO 9001 : 2000 CO. AN OHSAS 18000 :2007 CO. AN ISO 14001 : 2015 CO.
